Tri-Clover Clamps (Tri-Clamp / Sanitary Clamp)
Tri-Clover Clamps are used to securely connect two ferrules with a gasket placed between them, creating a hygienic and leak-resistant joint. They are widely used in sanitary pipework, processing equipment, tanks, valves, and pumps where regular cleaning, inspection, and maintenance are required.
We supply Tri-Clover Clamps according to customer requirements. Clamps can be supplied as a complete set with ferrules and gaskets, or each component can be supplied separately if required.

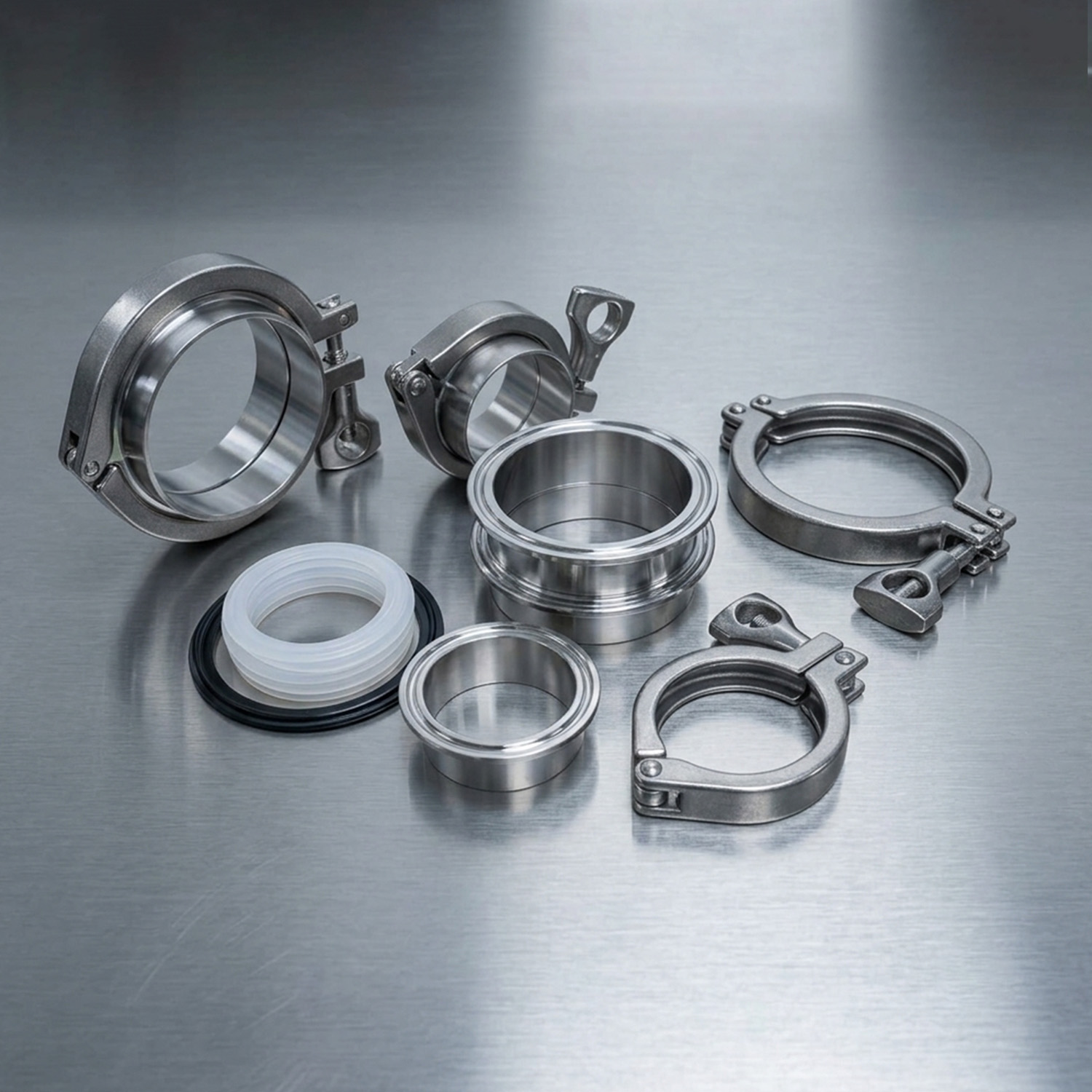

Standard Tri-Clover Connection Components
A standard Tri-Clover connection normally includes three components:
| Component | Image | Description |
|---|---|---|

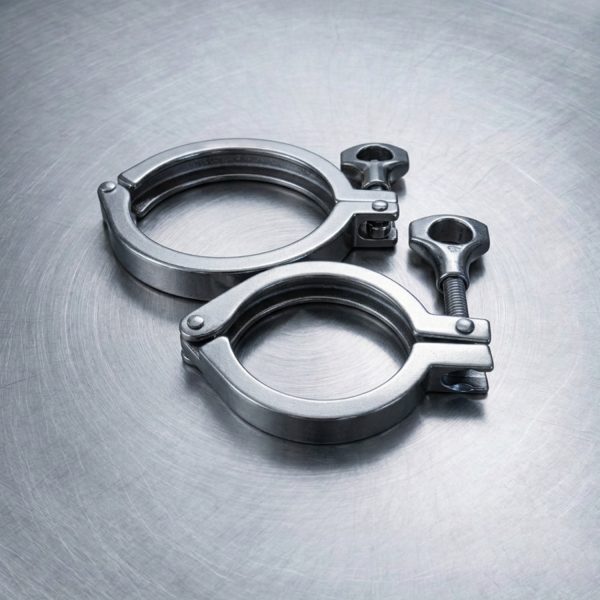

| Clamp |  |
Fits over the ferrule flanges and compresses the gasket to secure the connection. |

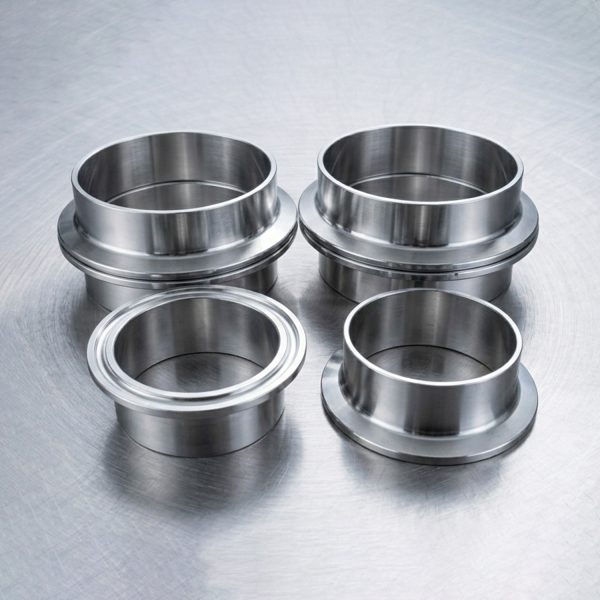

| Ferrules |  |
Flanged ends welded or threaded onto tubes, pipes, valves, or fittings. |

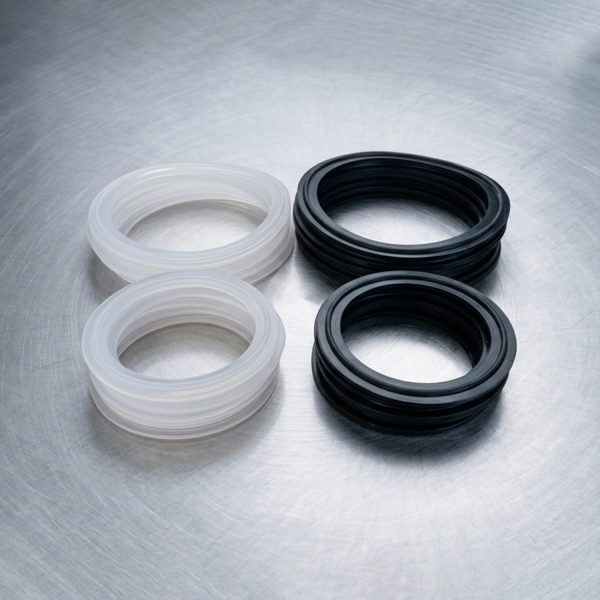

| Gasket |  |
Sits between the two ferrule faces to create a hygienic seal. |
Material Options
Tri-Clover Clamps and ferrules are available in the following stainless-steel grades:
| Material | Typical Application |
|---|---|
| SS304 | General food, beverage, dairy, and sanitary applications |
| SS316 / SS316L | Applications requiring higher corrosion resistance, including chemical, pharmaceutical, and more demanding environments |
Gasket Options
Gaskets are available in different materials to suit the product, temperature, and cleaning chemicals used in the application.
| Gasket Material | Typical Application |
|---|---|
| EPDM – Black | Steam, hot water, CIP systems, and general sanitary applications |
| Silicone | Food, beverage, dairy, and applications requiring flexibility over a wide temperature range |
| PTFE | Chemical-resistant and high-purity applications |
Size Specifications
Tri-Clover sizes are based on the tube outside diameter (OD), not the ferrule flange diameter. Please confirm the tube OD before ordering.
| Nominal Tube Size | DN Size | Clamp Size | Approx. Tube OD |
|---|---|---|---|
| 1/2″ | DN12 | 3/4″ | 12.7 mm |
| 3/4″ | DN19 | 3/4″ | 19.05 mm |
| 1″ | DN25 | 1.5″ | 25.4 mm |
| 1.5″ | DN38 | 1.5″ | 38.1 mm |
| 2″ | DN50 | 2″ | 50.8 mm |
| 2.5″ | DN65 | 2.5″ | 63.5 mm |
| 3″ | DN80 | 3″ | 76.2 mm |
| 4″ | DN100 | 4″ | 101.6 mm |
| 6″ | DN150 | 6″ | 152.4 mm |
| 8″ | DN200 | 8″ | 203.2 mm |
| 10″ | DN250 | 10″ | 254.0 mm |
| 12″ | DN300 | 12″ | 304.8 mm |
For pricing and availability, please provide the required clamp size or tube OD, material grade, gasket material, whether ferrules and gaskets are required, and the quantity needed. Our team will be happy to assist you in selecting the correct Tri-Clover Clamp, ferrules, and gaskets for your application.
